This is a great video by the YouTube channel The Hookup.

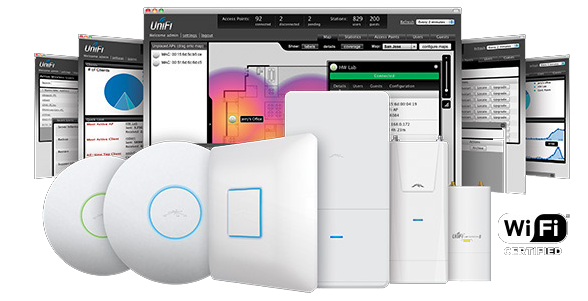

In this video he explains how to set up VLANs and firewall rules for a Ubiquity Unifi set up.
I have a similar set up in my house and this has been on my back burner for a while. His video has inspired me to just get it done.
Here is my plan going forward:
#1 Set up different VLANs for different types of devices (done)
I split my network up into the following VLANs (I am lazy so I matched my VLAN ID to the subnet).
LAN (all normal PCs / tablets and cameras)
VLAN 1 (default) – 192.168.1.0/24
Note: I have my cameras on this VLAN because I don’t want the streaming traffic
Guest (all guest devices)
VLAN 2 – 192.168.2.0/24
This is set up to use the built-in guest mode for networks in Unifi.
NoT (devices that do not need internet access)
VLAN 4 – 192.168.4.0/24
These are devices like my ESP Home sensors that will never need internet access.
IoT (devices that need cloud access, no LAN access**)
VLAN 5 – 192.168.5.0/24
These are the cloud devices, things that you are concerned might get a bad update and allow someone access to your LAN
These devices are:
- Google Homes and Hubs
- WeMo Swithces**
- Smart TVs**
- Ring Doorbells / Cameras / Chimes
- MyQ Garage Doors
** note: some devices like Chromecasts need access to my Plex server, so there are firewall exceptions for this.
#2 Set up Wireless Network for each device type (done)
I already had different SSIDs set up for different reasons, but I reassigned them to the following roles:
- LAN (default VLAN)
If you run into an issue where you need more than 4 SSIDs per AP, you can split the 2.4Ghz and 5Ghz into separate WLAN groups. Because my NoT devices are only 2.4 Ghz, I can move my Guest network to 5 Ghz only and have an extra SSID.
#3 Move Devices to Appropirate Networks
This will take longer than expected. I have to go device by device to move them to the new SSID or set up other managed switches with the new VLANs.
#4 Activate Firewall Rules and Test
Finally I will need to isolate the subnets and then make sure everything works. A few trouble items are the items above with **, they will need extra firewall rules.
Bonus – Cameras
As stated in the video cameras are a different beast. For my cameras, I want to only be accessable internal only. But I don’t want all of that traffic passing through the firewall. So instead of placing them in the NoT network, I will have them on the main LAN but with firewall rules blocking WAN traffic to and from them (with exception for GitHub for updates).
I will update this post with my thoughts as I finish the next few steps.
